Hydraulic Dock Leveler Heavy Duty 3KW 380V/50HZ Durable Over 20000 Uses CE / ISO Certified
What is the Hydraulic Dock Leveler?
These dock levelers operate via hydraulic power: a main cylinder raises the platform surface, while a smaller one actuates the lip plate. As the lip naturally drops to rest on the truck bed, it creates a seamless path between dock and vehicle—thus streamlining the loading process. The fixed hydraulic dock leveler, with its scalable design, accommodates diverse height requirements and transport conditions. Its versatility ensures compatibility with many truck and container types, addressing the limitations traditional methods face when handling uneven levels.
What are the Benefits of the Hydraulic Dock Leveler?
- High-Performance System: Equipped with premium oil cylinders and a dependable power unit, delivering strong driving force and outstanding sealing performance.
- Long-Lasting Steel: Crafted from high-tensile manganese steel rectangular tubes, ensuring superior compression resistance and zero deformation.
- Reliable Safety Support Rod: Offers effective protection for technicians when conducting inspection or maintenance inside the dock bridge.
- Leak-Proof Hydraulic Station: Boasts strong sealing capability, a sturdy structure, and an integrated design to avoid oil leaks.
Effortless Operation: Electric-hydraulic control enables easy handling, which boosts loading efficiency while saving time and labor costs.
Products model and parameter series of the Hydraulic Dock Leveler
Specifications, sizes and colors can be customized according to customer requirements
| Model | Equipment specifications (mm) | Load Capacity (t) | Pit size (mm) | Adjustment range (mm) |
| HX-GTY6×6 | 1830(W)×1830(L)×495(H) | 6-20T | 1870(W)×1830(L)×500(H) | +400/-300 |
| HX-GTY6.5×6 | 1980(W)×1830(L)×495(H) | 6-20T | 2020(W)×1830(L)×500(H) | +400/-300 |
| HX-GTY7×6 | 2130(W)×1830(L)×495(H) | 6-20T | 2170(W)×1830(L)×500(H) | +400/-300 |
| HX-GTY6×8 | 1830(W)×2280(L)×495(H) | 6-20T | 1870(W)×2280(L)×500(H) | +400/-300 |
| HX-GTY6.5×8 | 1980(W)×2280(L)×495(H) | 6-20T | 2020(W)×2280(L)×500(H) | +400/-300 |
| HX-GTY7×8 | 2130(W)×2280(L)×495(H) | 6-20T | 2170(W)×2280(L)×500(H) | +400/-300 |
| HX-GTY6×10 | 1830(W)×2850(L)×495(H) | 6-20T | 1870(W)×2850(L)×500(H) | +400/-300 |
| HX-GTY6.5×10 | 1980(W)×2850(L)×495(H) | 6-20T | 2020(W)×2850(L)×500(H) | +400/-300 |

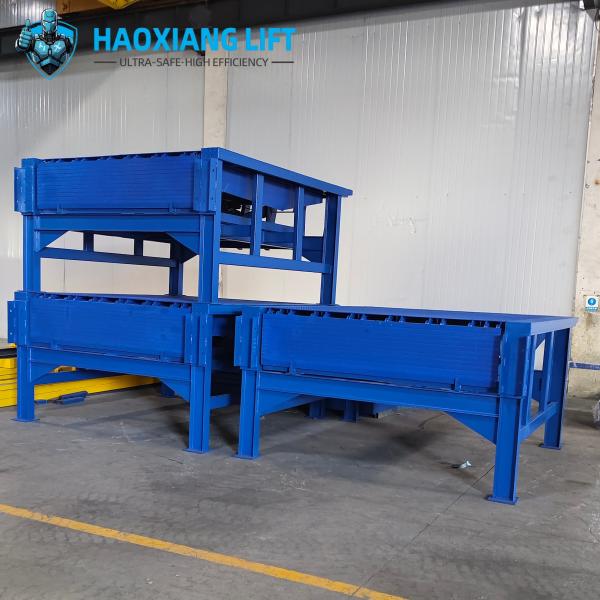

What does the Hydraulic Dock Leveler look like?
